Publisher:

Konstantin Zeldovich, Physics Department, Moscow State University

License:

Freeware

Description:

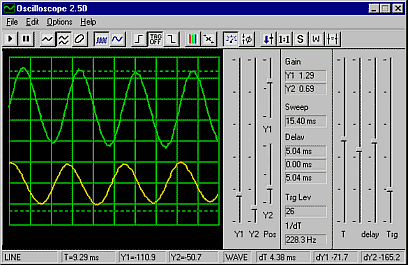

Oscilloscope for Windows is an application that converts your PC into a powerful dual-trace oscilloscope. Oscilloscope uses your PC's sound card as an Analog-to-Digital Converter (ADC) to digitize any input waveform (speech, music, electric signal, etc.) and then presents it on the monitor in real time, allowing the user to control the display in the same way as on a conventional "standalone" scope, for example change gain, timebase or plot Lissajous patterns.

• Any sound card can be used
• Single trace, dual trace and XY modes
• Spectrum analyzer (realtime, built-in)
• 20 kHz bandwidth
• Triggering
• Point-and-click meter function
• Storage mode
• Data export to Windows clipboard or disk file
